10022689 | Fischer Elektronik
Extruded heatsink, (L x W x H) 100 x 80 x 78.6 mm, 1.3 to 0.6 K/W, black anodized, 10022689
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
24.1689 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
24.17 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1689 €
2 pcs.
22.6100 €
5 pcs.
21.2415 €
10 pcs.
19.7421 €
*incl. VAT plus shipping costs
Subject to prior sale
Extruded heatsink for DIN mounting rails, type SK 89 KL SSR.

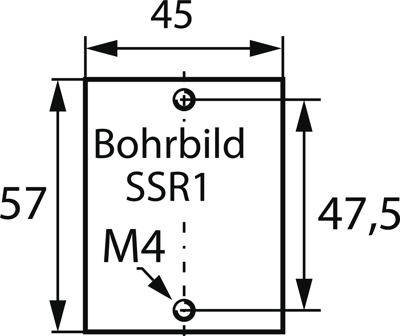

Complete with mounting rail clip KL 35 and M 4 tapped holes in the heatsink.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.6 K/W | |
| Max. heat resistance | 1.3 K/W | |
| Length | 100 mm | |
| Width | 80 mm | |
| Height | 78.6 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized | |
| Suitable for | SSR-1, SSR-2, SSR-4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76042990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
