10021309 | Fischer Elektronik
Extruded heatsink, (L x W x H) 150 x 72 x 94.3 mm, 0.9 to 0.28 K/W, black anodized, 10021309
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
43.4945 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
43.49 € *
Price list
Quantity
Price per unit*
1 pcs.
43.4945 €
5 pcs.
41.6024 €
10 pcs.
39.8650 €
25 pcs.
38.2704 €
*incl. VAT plus shipping costs
Subject to prior sale
Extruded heatsink, 10021309, Fischer Elektronik

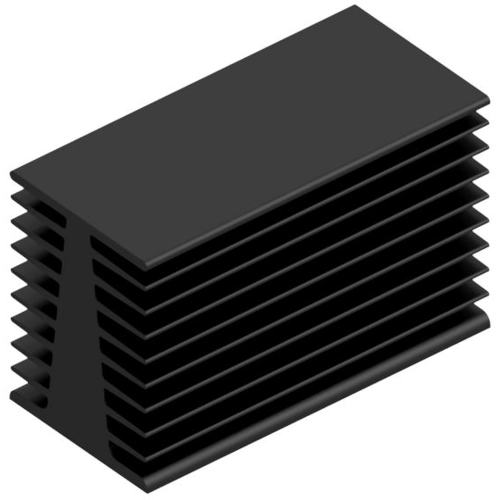

Extruded Heatsink SK 556 in 150 mm x 72 mm x 94.3 mm. Surface black anodised.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Min. heat resistance | 0.28 K/W | |
| Max. heat resistance | 0.9 K/W | |
| Length | 150 mm | |
| Width | 72 mm | |
| Height | 94.3 mm | |
| Material | aluminum | |
| Version | extruded heatsink | |
| Surface type | black anodized |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76169990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
