10021159 | Fischer Elektronik

Extruded heatsink, 75 x 180 x 48 mm, 1.25 to 0.6 K/W, black anodized

Order No.: 72B924
EAN: 4099889476576
MPN:
10021159
SK 53 75 SA
Series: SK
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.6 K/W
Max. heat resistance 1.25 K/W
Length 75 mm
Width 180 mm
Show 2 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
7.7826 € *
Available: 49 pcs.
Leadtime: 6 Weeks **
Total Price:
7.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.7826 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

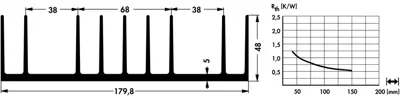

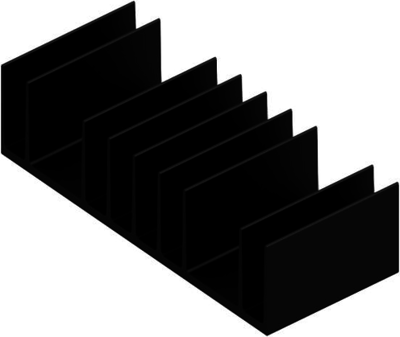

Profile heatsinks, type Fischer SK 53.

Made of black anodized aluminum, no perforation. Meter section for orders as of 10 items on request.
Technical specifications
Version profile heatsink
Width 180 mm
Height 48 mm
Length 75 mm
Material die-cast aluminum
Max. heat resistance 1.25 K/W
Min. heat resistance 0.6 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
