10021142 | Fischer Elektronik

Extruded heatsink, 1000 x 250 x 40 mm, 0.82 to 0.35 K/W, black anodized

Order No.: 65B899
EAN: 4099889473551
MPN:
10021142
SK 524 1000 SA
Fischer Elektronik
default L
Image may differ
Print
Key Specification:

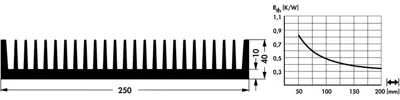

Min. heat resistance 0.35 K/W
Max. heat resistance 0.82 K/W
Length 1000 mm
Width 250 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
348.1583 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
348.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
348.1583 €
Description
Technical specifications
Download
Logistics
Compliance

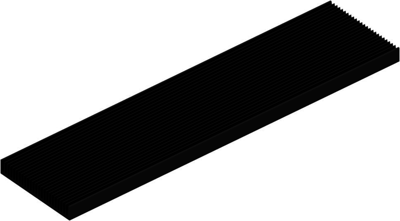

Standard extruded heatsink, 10021142, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 0.82-0.35 K/W, Surface: black anodised.
Technical specifications
Version profile heatsink
Width 250 mm
Height 40 mm
Length 1000 mm
Material aluminum
Max. heat resistance 0.82 K/W
Min. heat resistance 0.35 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
