10021141 | Fischer Elektronik

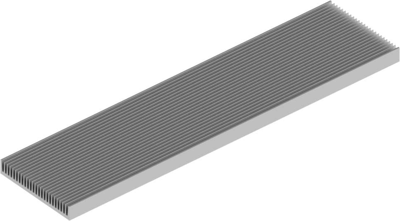

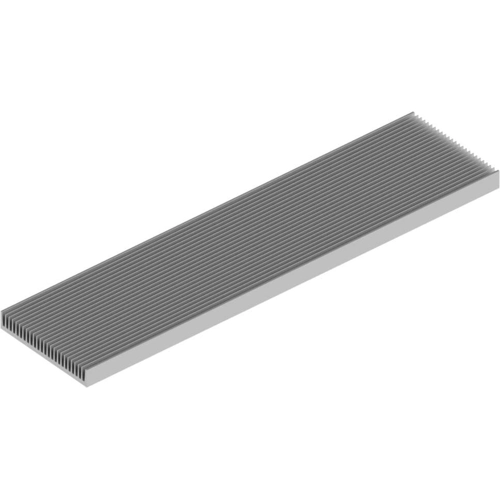

Extruded heatsink, 1000 x 250 x 40 mm, 0.82 to 0.35 K/W, natural aluminum

Order No.: 65B898
EAN: 4099889473544
MPN:
10021141
SK 524 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.35 K/W
Max. heat resistance 0.82 K/W
Length 1000 mm
Width 250 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
272.9027 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
272.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
272.9027 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10021141, Fischer Elektronik

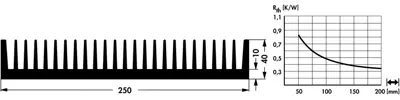

Standard extruded heatsink with thermal resistance: 0.82-0.35 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version profile heatsink
Width 250 mm
Height 40 mm
Length 1000 mm
Material aluminum
Max. heat resistance 0.82 K/W
Min. heat resistance 0.35 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
