10020749 | Fischer Elektronik

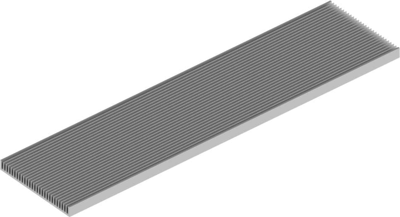

Extruded heatsink, 1000 x 250 x 28 mm, 1.25 to 0.5 K/W, natural aluminum

Order No.: 65B889
EAN: 4099889473452
MPN:
10020749
SK 49 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 0.5 K/W
Max. heat resistance 1.25 K/W
Length 1000 mm
Width 250 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
184.5928 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
184.59 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
184.5928 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10020749, Fischer Elektronik

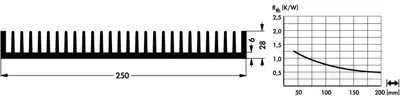

Standard extruded heatsink with thermal resistance: 1.25-0.5 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium)
Technical specifications
Version profile heatsink
Width 250 mm
Height 28 mm
Length 1000 mm
Material aluminum
Max. heat resistance 1.25 K/W
Min. heat resistance 0.5 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
