Deutsch DE

10020719 | Fischer Elektronik

Extruded heatsink, 50 x 29.4 x 45 mm, 6.9 to 2.9 K/W, black anodized

Order No.: 65B885
EAN: 4099889473414
MPN:
10020719
SK 489 50 SA
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 2.9 K/W
Max. heat resistance 6.9 K/W
Length 50 mm
Width 29.4 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.4268 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Add to Cart
Total Price:
4.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
4.4268 €
Description
Technical specifications
Download
Logistics
Compliance

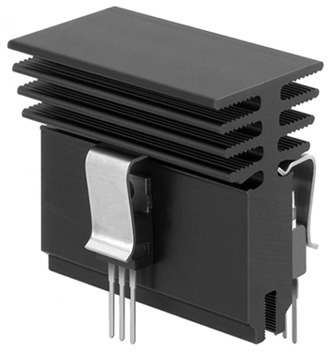

Extruded heatsink, 10020719, Fischer Elektronik

Extruded heatsink for lock-in retaining spring for THFU 1-6, Profile threads, Surface: Black anodised.

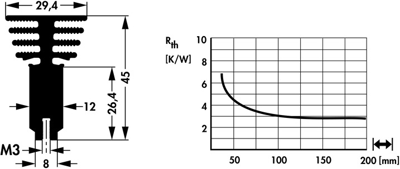

Technical specifications
Version extruded heatsink
Width 29.4 mm
Height 45 mm
Length 50 mm
Material aluminum
Max. heat resistance 6.9 K/W
Min. heat resistance 2.9 K/W
Surface type black anodized
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
