10019571 | Fischer Elektronik

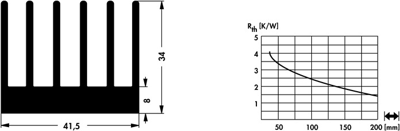

Extruded heatsink, 1000 x 41.5 x 34 mm, 4.1 to 1.4 K/W, natural aluminum

Order No.: 65B833
EAN: 4099889472943
MPN:
10019571
SK 189 1000 AL
Fischer Elektronik
default L
Image may differ
Print
Key Specification:
Min. heat resistance 1.4 K/W
Max. heat resistance 4.1 K/W
Length 1000 mm
Width 41.5 mm
Download Datasheet Technical specifications
Unit Price (€ / pc.)
59.9522 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
59.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
59.9522 €
Description
Technical specifications
Download
Logistics
Compliance

Standard extruded heatsink, 10019571, Fischer Elektronik

Standard extruded heatsink with thermal resistance: 4.1-1.4 K/W, Surafce: raw degreased aluminium (by the metre raw aluminium).
Technical specifications
Version extruded heatsink
Width 41.5 mm
Height 34 mm
Length 1000 mm
Material aluminum
Max. heat resistance 4.1 K/W
Min. heat resistance 1.4 K/W
Surface type natural aluminum
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 76042990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
