7F.70.9.024.3100 | Finder
EMC fan, 24 V, 204 x 204 x 97.5 mm, 100 m³/h, 43 dB, ball bearing, Finder 7F.70.9.024.3100
Order No.: 34G2905
EAN: 8012823367316
MPN:
7F.70.9.024.3100
7F7090243100
Unit Price (€ / pc.)
286.1117 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
286.11 € *
Price list
Quantity
Price per unit*
1 pcs.
286.1117 €
2 pcs.
279.1264 €
*incl. VAT plus shipping costs
Subject to prior sale

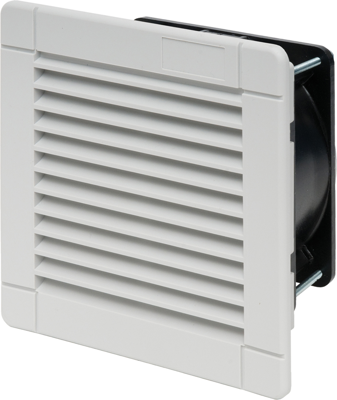

Filter Fan, 7F.70.9.024.3100, Finder
EMC filter fan for switch cabinet, air flow rate 100 m3/h, operating voltage 24 V DC, operating current 370 mA, rated output 9 W, mounting cut-out 177 x 177, protection class IP 54, ambient temperature -10 - 70 degrees C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 204 mm | |
| Degree of protection (IP) | IP54 | |
| Sound pressure level | 43 db | |
| Depth | 97.5 mm | |
| Rated voltage | 24 V | |
| Width | 204 mm | |
| Type of bearing | ball bearing | |
| Volume flow | 100 m³/h |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84146000 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
