7F.70.8.230.3100 | Finder

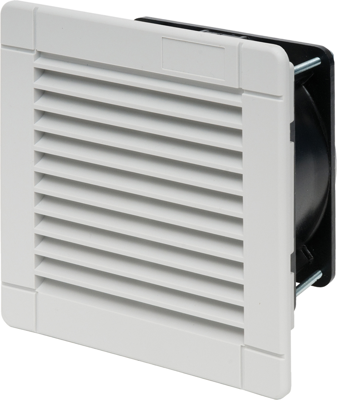

Name: EMC fan, 230 V, 204 x 204 x 97.5 mm, 100 m³/h, 43 dB, ball bearing, Finder 7F.70.8.230.3100
Brand: Finder
SKU: 34G2906
Availability: InStock

EMC fan, 230 V, 204 x 204 x 97.5 mm, 100 m³/h, 43 dB, ball bearing, Finder 7F.70.8.230.3100

Order No.: 34G2906

EAN: 8012823367255

MPN:

7F.70.8.230.3100

7F7082303100

Image may differ

Key Specification:

Rated voltage 230 V

Width 204 mm

Height 204 mm

Depth 97.5 mm

Volume flow 100 m³/h

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

223.5296 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

223.53 € *

Price list

Quantity

Price per unit*

1 pcs.

223.5296 €

2 pcs.

218.0794 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Filter Fan, 7F.70.8.230.3100, Finder

EMC filter fan for switch cabinet, air flow rate 100 m3/h, operating voltage 230 V, operating current 140 mA, rated power 22 W, mounting cut-out 177 x 177, protection class IP 54, ambient temperature -10 - 70 degrees C.

Technical specifications

Filter	Property	Value
	Height	204 mm
	Degree of protection (IP)	IP54
	Sound pressure level	43 db
	Depth	97.5 mm
	Rated voltage	230 V
	Width	204 mm
	Type of bearing	ball bearing
	Volume flow	100 m³/h
