8A.88.9.024.1600 | Finder
Extension module, 8 Form A (N/O), 24 VDC, 8A.88.9.024.1600
Order No.: 34G2230
EAN: 8012823452944
MPN:
8A.88.9.024.1600
8A8890241600
Unit Price (€ / pc.)
171.3243 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
171.32 € *
Price list
Quantity
Price per unit*
1 pcs.
171.3243 €
2 pcs.
167.1474 €
*incl. VAT plus shipping costs
Subject to prior sale

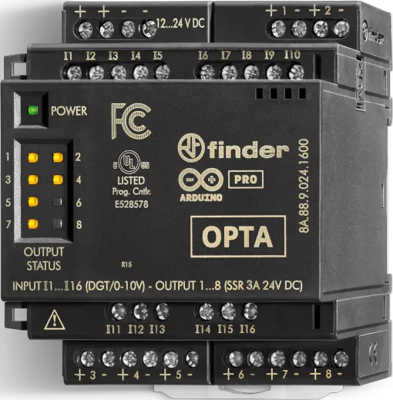

Programmable Logic Relay, 8A.88.9.024.1600, Finder
Digital SSR extension module type 8A.88. The connection between all extension modules is made via an internal interface, with the possibility of realizing different combinations, with a unique and incomparable level of project customization. Function and features: 16 digital/analog inputs (0-10 V) 8 SSR outputs 2 A rated voltage 12-24 V DC.
Applications
- Panels for electrical distribution
- Packaging machines
- Control and management of water
- Control panels for pumps
- Control panels for pumps
- Building automation
- Forced-air ventilators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 84 mm | |
| Contact type | 8 Form A (N/O) | |
| Version | extension module | |
| Assembly | DIN rail | |
| Depth | 56.8 mm | |
| Width | 70 mm | |
| Control Voltage | 24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
