8A.58.9.024.1600 | Finder

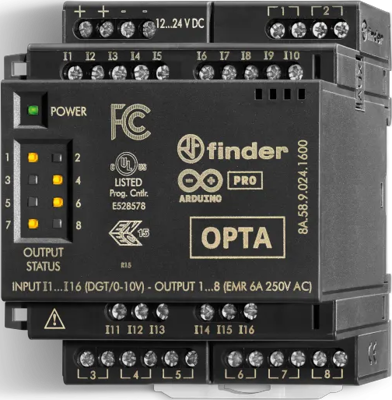

Extension module, 8 Form A (N/O), 24 VDC, 8A.58.9.024.1600
Order No.: 34G2231
EAN: 8012823452920
MPN:
8A.58.9.024.1600
8A5890241600
Unit Price (€ / pc.)
160.4834 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
160.48 € *
Price list
Quantity
Price per unit*
1 pcs.
160.4834 €
2 pcs.
156.5683 €
*incl. VAT plus shipping costs
Subject to prior sale
Programmable Logic Relay, 8A.58.9.024.1600, Finder
Digital EMR expansion module type 8A.58.9.024.1600. The connection between all expansion modules is made via an internal interface, with the possibility of realizing different combinations, with a unique and incomparable level of project customization. Function and features: 16 digital/analog inputs (0-10 V) 8 EMR outputs 6 A Rated voltage 12-24 V DC.
Applications
- Panels for electrical distribution
- Packaging machines
- Control and management of water
- Control panels for pumps
- Control panels for pumps
- Building automation
- Forced-air ventilators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 70 mm | |
| Version | extension module | |
| Contact type | 8 Form A (N/O) | |
| Height | 84 mm | |
| Control Voltage | 24 VDC | |
| Depth | 56.8 mm | |
| Assembly | DIN rail |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85371098 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
