4C.02.8.110.0060 | Finder
Coupling relay 2 Form C (NO/NC), 110 V (AC), 6900 Ω, 8 A, 250 V (AC), 4C.02.8.110.0060
Order No.: 34G2531
EAN: 8012823308258
MPN:
4C.02.8.110.0060
4C0281100060
Unit Price (€ / pc.)
23.0027 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.00 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0027 €
5 pcs.
22.0031 €
10 pcs.
20.8012 €
20 pcs.
19.7183 €
*incl. VAT plus shipping costs
Subject to prior sale

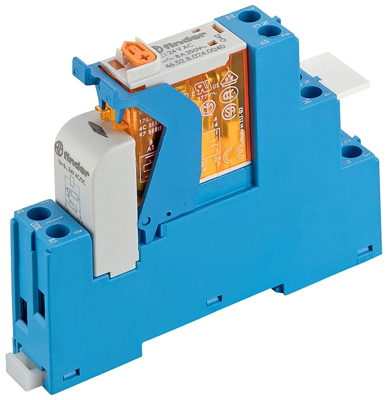

Relay Interface Module, 4C.02.8.110.0060, Finder
Relay Interface Module, 2 CO 8 A, screw terminals, 15.8 mm wide. For interfacing with PLC systems. Supplied with Supply status and EMC coil suppression module, and identification label. Suitable for mounting on 35 mm rail (EN 60715).
Features
- Coil Indication and EMC suppression module
- Identification label
- UL Listing (relay/socket/jumper link)
- Cadmium-free contacts
Applications
- Escalators
- Road / tunnel lighting
- Hoists and cranes
- Carousel warehouses
- Control panels
- Panels for electrical distribution
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Status display | LED, green | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 | |
| Rated voltage (AC) | 250 V | |
| Contact material | AgNi | |
| Coil voltage (AC) | 110 V | |
| Coil resistance | 6900 Ω | |
| LED display | Yes | |
| Product type | coupling relay | |
| Contact type | 2 Form C (NO/NC) | |
| Rated current | 8 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
