TLC/0.1A-221M-00 | Fastron
Toroidal choke, radial, 220 µH, 100 mA, TLC/0.1A-221M-00
Unit Price (€ / pc.)
1.5232 € *
Available in 4 Days: 1,500 pcs. - if ordered today

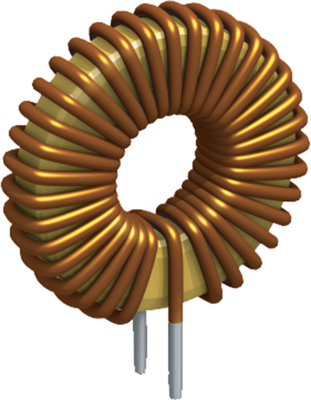

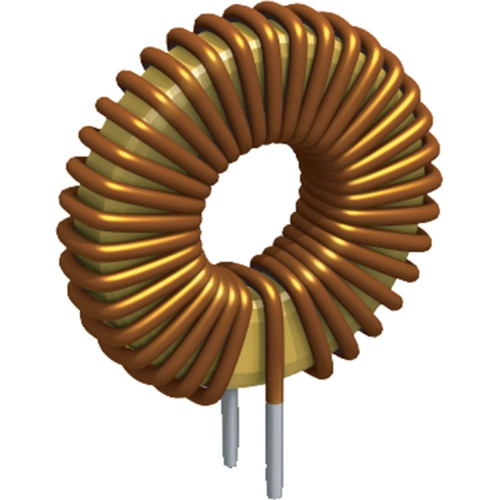

Toroid line choke, TLC/0.1A-221M-00, FASTRON
The TLC/0.1A-221M-00 is a toroid line choke which provides an efficient means of filtering supply lines having in-phase signals of equal amplitude thus allowing equipment to meet stringent electrical radiation specifications.
Features
- Wide inductance range
- High saturation current
Applications
- Power supplies
- Output chokes
- Control units
- EMI/RFI- suppression chokes
- Line-filters

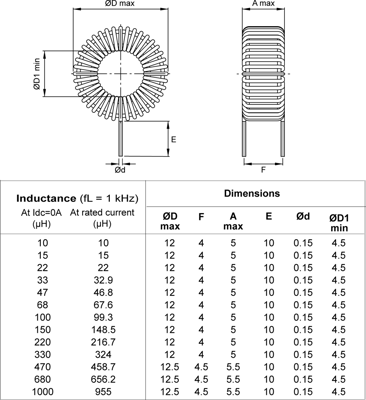

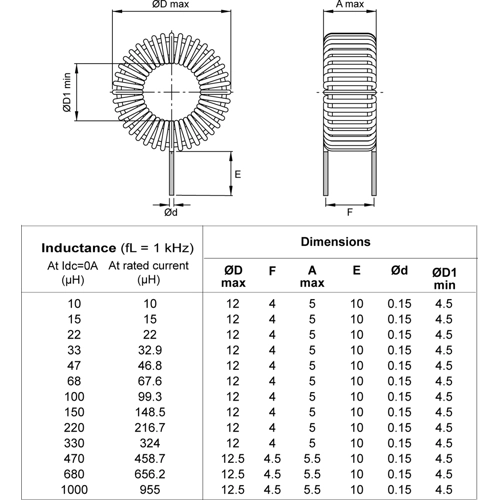

Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 100 mA | |
| DC resistance | 1.48 Ω | |
| Measuring frequency | 1 kHz | |
| Tolerance | ±20 % | |
| Width | 5 mm | |
| Inductance | 220 µH | |
| Design | radial | |
| Version | toroidal choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
