5RCC-2R5M-00 | Fastron

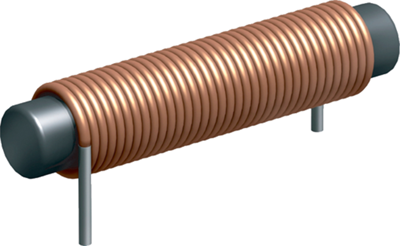

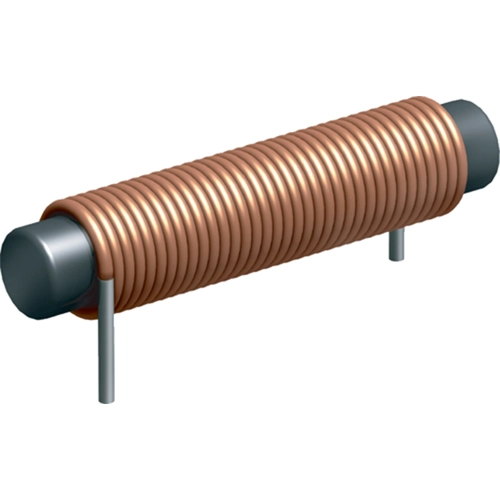

Suppressor choke, horizontal, 2.5 µH, 6 A, 5RCC-2R5M-00
Unit Price (€ / pc.)
0.9639 € *
Available in 4 Days: 250 pcs. - if ordered today
Rod core chokes, type Fastron .RCC.
For applications in the automotive industry, interference suppression for electrical motors, with ferrite core
Type 5RCC.
Measuring frequency (up to 7
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 20 mm | |
| DC current | 6 A | |
| Saturation current | 18 A | |
| Inductance | 2.5 µH | |
| Design | horizontal | |
| DC resistance | 5 mΩ | |
| Version | suppressor choke | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 1 piece |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
