1616FPS-4R7M-01 | Fastron
Power choke, SMD 1515, 4.7 µH, 1.9 A, 1616FPS-4R7M-01
Unit Price (€ / pc.)
0.2737 € *
Available in 4 Days: 17,354 pcs. - if ordered today
Total Price:
0.27 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2737 €
10 pcs.
0.2535 €
100 pcs.
0.2392 €
500 pcs.
0.2249 €
1000 pcs.
0.2142 €
*incl. VAT plus shipping costs
Subject to prior sale

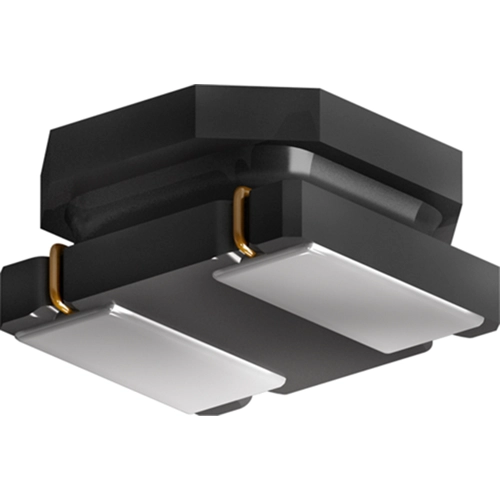

Power inductor, 1616FPS-4R7M-01, FASTRON
The 1616FPS-4R7M-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- DC/DC converters
- Portable devices
- Backlight for displays

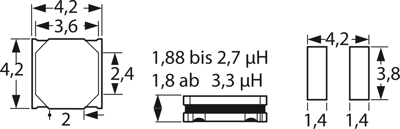

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 4.2 mm | |
| DC resistance | 0.084 Ω | |
| Tolerance | ±20 % | |
| DC current | 1.9 A | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD 1515 | |
| Height | 1.8 mm | |
| Length | 4.2 mm | |
| Inductance | 4.7 µH | |
| Saturation current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1 piece |
| Country of origin | MY |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
