1616FPS-221M-01 | Fastron

Power choke, SMD 1515, 220 µH, 280 mA, 1616FPS-221M-01

default S
front S
default L
front L
Total price
(0.35 € * / pcs.)
6.90 €
Available: 2,104 pcs.
Quantity
Price per unit*
20 pcs.
0.35 €
100 pcs.
0.30 €
500 pcs.
0.27 €
2000 pcs.
0.24 €
4000 pcs.
0.22 €
*incl. VAT plus shipping costs
Show 11 variants
Description

Product by Fastron at Bürklin Elektronik

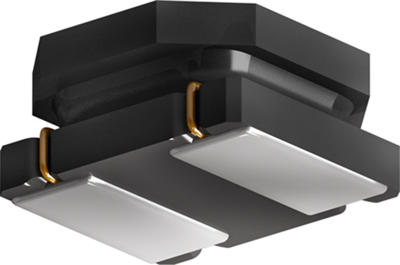

SMD Power inductor, 1616FPS-221M-01, Fastron

Chip Type

Features

  • The chip power inductor 1616FPS-221M-01 is equipped with a high flux density ferrite core
  • Small footprints 3x3, 4x4, 6x6 mm and flat flat profile
  • The Inductance range is from 0,5µH to 220µH
  • Rated Current up to 6.5A
  • The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
  • These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant

Applications

  • Suitable for circuits where high current saturation is critical
  • When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
  • Backlight for Tablet Displays

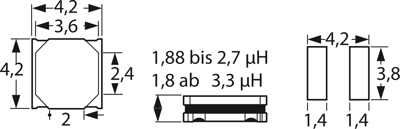

Technical specifications
Version power choke
Design SMD 1515
Width 4.2 mm
DC current 0.28 A
DC resistance 3.552 Ω
Height 1.8 mm
Inductance 0.22 mH
Length 4.2 mm
Measuring frequency 0.1 MHz
Saturation current 0.3 A
Tolerance ±20 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 3,000 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 11 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Power choke, SMD 1515, 220 µH, 280 mA, 1616FPS-221M-01
Order No.:
 75D6317
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-221M-01
20 pcs.
0.35 €
100 pcs.
0.30 €
500 pcs.
0.27 €
2000 pcs.
0.24 €
4000 pcs.
0.22 €
6.90 € *
Available: 2,104 pcs.
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.22 mH
0.28 A
3.552 Ω
Power choke, SMD 1515, 2.7 µH, 2.3 A, 1616FPS-2R7M-01
Order No.:
 75D6305
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-2R7M-01
100 pcs.
0.17 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.88 mm
0.0027 mH
2.3 A
0.052 Ω
Power choke, SMD 1515, 22 µH, 900 mA, 1616FPS-220M-01
Order No.:
 75D6311
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-220M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.022 mH
0.9 A
0.348 Ω
Power choke, SMD 1515, 150 µH, 320 mA, 1616FPS-151M-01
Order No.:
 75D6316
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-151M-01
20 pcs.
0.35 €
100 pcs.
0.30 €
500 pcs.
0.27 €
2000 pcs.
0.24 €
4000 pcs.
0.22 €
6.90 € *
Available: 33 pcs.
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.15 mH
0.32 A
2.4 Ω
Power choke, SMD 1515, 4.7 µH, 1.9 A, 1616FPS-4R7M-01
Order No.:
 75D6307
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-4R7M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.0047 mH
1.9 A
0.084 Ω
Power choke, SMD 1515, 6.8 µH, 1.5 A, 1616FPS-6R8M-01
Order No.:
 75D6308
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-6R8M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.0068 mH
1.5 A
0.118 Ω
Power choke, SMD 1515, 1 µH, 3.7 A, 1616FPS-1R0N-01
Order No.:
 75D6301
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-1R0N-01
20 pcs.
0.33 €
100 pcs.
0.29 €
500 pcs.
0.26 €
2000 pcs.
0.24 €
4000 pcs.
0.21 €
6.66 € *
Available: 30 pcs.
SMD 1515
power choke
4.2 mm
4.2 mm
±30 %
1.88 mm
0.001 mH
3.7 A
0.025 Ω
Power choke, SMD 1515, 15 µH, 1 A, 1616FPS-150M-01
Order No.:
 75D6310
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-150M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.015 mH
1 A
0.264 Ω
Power choke, SMD 1515, 100 µH, 420 mA, 1616FPS-101M-01
Order No.:
 75D6315
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-101M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.88 mm
0.1 mH
0.42 A
1.596 Ω
Power choke, SMD 1515, 10 µH, 1.3 A, 1616FPS-100M-01
Order No.:
 75D6309
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-100M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.8 mm
0.01 mH
1.3 A
0.18 Ω
Power choke, SMD 1515, 47 µH, 600 mA, 1616FPS-470M-01
Order No.:
 75D6313
Manufacturer:
 Fastron
Manufacturer SKU
 1616FPS-470M-01
100 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1515
power choke
4.2 mm
4.2 mm
±20 %
1.88 mm
0.047 mH
0.6 A
0.78 Ω
