1616FPS-2R2M-01 | Fastron

Power inductor, SMD 1515, 2.2 µH, 2.9 A, 1616FPS-2R2M-01

Order No.: 75D6304
EAN: 4099889040975
MPN:
1616FPS-2R2M-01

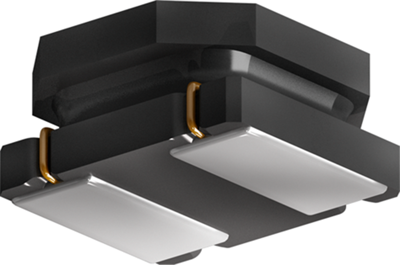

1616FPS-2R2M-01 Fastron Fixed Inductors Image 1

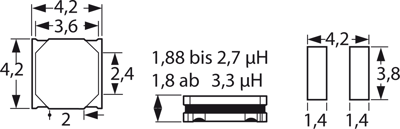

1616FPS-2R2M-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available in 4 Days: 1,200 pcs. - if ordered today
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
10 pcs.
0.3689 €
100 pcs.
0.3213 €
500 pcs.
0.2737 €
1000 pcs.
0.2499 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD Power inductor, 1616FPS-2R2M-01, Fastron

Chip Type

Features

  • The chip power inductor 1616FPS-2R2M-01 is equipped with a high flux density ferrite core
  • Small footprints 3x3, 4x4, 6x6 mm and flat flat profile
  • The Inductance range is from 0,5µH to 220µH
  • Rated Current up to 6.5A
  • The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
  • These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant

Applications

  • Suitable for circuits where high current saturation is critical
  • When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
  • Backlight for Tablet Displays
Logistics
Property Value
Customs tariff number 85045000
Country of origin MY
Original Packaging Reel with 1 piece
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
