1616FPS-100M-01 | Fastron
Power choke, SMD 1515, 10 µH, 1.3 A, 1616FPS-100M-01
Unit Price (€ / pc.)
0.8330 € *
Available: 750 pcs.
Available in 4 Days: 2,602 pcs. - if ordered today
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.5236 €
50 pcs.
0.4522 €
250 pcs.
0.3927 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

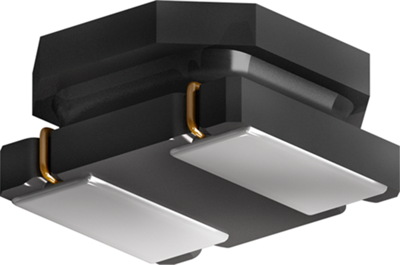

Power inductor, 1616FPS-100M-01, FASTRON
The 1616FPS-100M-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- DC/DC converters
- Portable devices
- Backlight for displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1.3 A | |
| DC resistance | 0.18 Ω | |
| Saturation current | 1.4 A | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±20 % | |

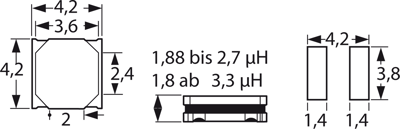

| Length | 4.2 mm | |
| Height | 1.8 mm | |
| Width | 4.2 mm | |
| Inductance | 10 µH | |
| Design | SMD 1515 | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 1 piece |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
