1212FPS-1R5N-01 | Fastron

Power choke, SMD 1212, 1.5 µH, 1.9 A, 1212FPS-1R5N-01

Order No.: 74D3601
EAN: 4099889009958
MPN:
1212FPS-1R5N-01
Series: 1212FPS
Fastron
1212FPS-1R5N-01 Fastron Fixed Inductors Image 1
1212FPS-1R5N-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.357 € *
Available: 0 pcs.
Available in 4 Days: 1,200 pcs.
Leadtime: 1 Week **
Total Price:
0.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
0.357 €

SMD Power inductor, 1212FPS-1R5N-01, Fastron

Chip Type

Features

  • The chip power inductor 1212FPS-1R5N-01 is equipped with a high flux density ferrite core.
  • Small footprints 3x3, 4x4, 6x6 mm and flat flat profile
  • The Inductance range is from 0,5µH to 220µH
  • Rated Current up to 6.5A
  • The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
  • These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant

Applications

  • Suitable for circuits where high current saturation is critical
  • When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
  • Backlight for Tablet Displays

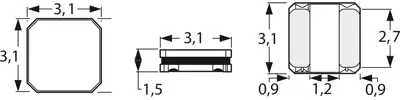

Technical specifications
Version power choke
Design SMD 1212
Width 3.1 mm
DC current 1.9 A
DC resistance 66 mΩ
Height 1.5 mm
Inductance 1.5 µH
Length 3.1 mm
Saturation current 1.8 A
Tolerance ±30 %
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
