1212FPS-100N-01 | Fastron

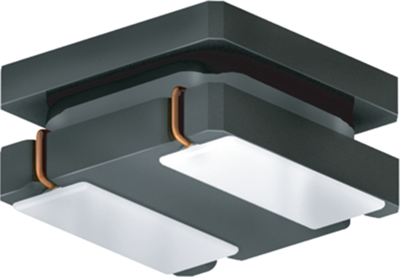

Power choke, SMD 1212, 10 µH, 870 mA, 1212FPS-100N-01

default S
front S
default L
front L
Total price
(0.38 € * / pcs.)
3.81 €
Available: 186 pcs.
Quantity
Price per unit*
10 pcs.
0.38 €
50 pcs.
0.33 €
250 pcs.
0.30 €
1000 pcs.
0.27 €
2000 pcs.
0.24 €
*incl. VAT plus shipping costs
Show 11 variants
Description

Product by Fastron at Bürklin Elektronik

SMD Power inductor, 1212FPS-100N-01, Fastron

The 1212FPS-100N-01 is used as energy storage devices in switched-mode power devices to produce DC current.

Features

  • The chip power inductor 1212FPS-100N-01 is equipped with a high flux density ferrite core
  • Small footprints 3x3, 4x4, 6x6 mm and flat profile
  • The Inductance range is from 0,5µH to 220µH
  • Rated Current up to 6.5A
  • The Models are magnetically shielded with a newly developed Ferrite-Epoxy resin
  • These Inductors provide good solderability with lead free tinned Terminals and are RoHS compliant

Applications

  • Suitable for circuits where high current saturation is critical
  • When small size matters, only 1.5 mm and higher profile for DC/DC converters, for example in portable devices
  • Backlight for Tablet Displays

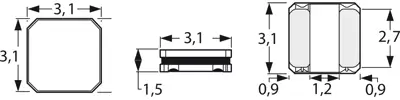

Technical specifications
Version power choke
Design SMD 1212
Width 3.1 mm
DC current 0.87 A
DC resistance 0.276 Ω
Height 1.5 mm
Inductance 0.01 mH
Length 3.1 mm
Saturation current 0.75 A
Tolerance ±30 %
Show similar products (0)
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Reel with 1 piece
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
1 item with 11 variations
Item description
Price list
Total
Design
Version
Width
Length
Tolerance
Height
Inductance
DC current
DC resistance
Power choke, SMD 1212, 47 µH, 400 mA, 1212FPS-470N-01
Order No.:
 74D3610
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-470N-01
10 pcs.
0.37 €
50 pcs.
0.33 €
250 pcs.
0.30 €
1000 pcs.
0.27 €
2000 pcs.
0.24 €
3.69 € *
Available: 3,075 pcs.
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.047 mH
0.4 A
1.406 Ω
Power choke, SMD 1212, 10 µH, 870 mA, 1212FPS-100N-01
Order No.:
 74D3606
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-100N-01
10 pcs.
0.38 €
50 pcs.
0.33 €
250 pcs.
0.30 €
1000 pcs.
0.27 €
2000 pcs.
0.24 €
3.81 € *
Available: 186 pcs.
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.01 mH
0.87 A
0.276 Ω
Power choke, SMD 1212, 100 µH, 250 mA, 1212FPS-101N-01
Order No.:
 74D3611
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-101N-01
100 pcs.
0.26 €
0.00 € *
Currently not in stock, we will order for you
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.1 mH
0.25 A
2.92 Ω
Power choke, SMD 1212, 3.3 µH, 1.45 A, 1212FPS-3R3N-01
Order No.:
 74D3603
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-3R3N-01
10 pcs.
0.38 €
50 pcs.
0.33 €
250 pcs.
0.30 €
1000 pcs.
0.27 €
2000 pcs.
0.24 €
0.00 € *
Currently not in stock, we will order for you
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.0033 mH
1.45 A
0.112 Ω
Power choke, SMD 1212, 2.2 µH, 1.6 A, 1212FPS-2R2N-01
Order No.:
 74D3602
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-2R2N-01
6 pcs.
0.37 €
2.21 € *
Available: 6 pcs.
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.0022 mH
1.6 A
0.072 Ω
Power choke, SMD 1212, 1 µH, 2.1 A, 1212FPS-1R0N-01
Order No.:
 74D3600
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-1R0N-01
100 pcs.
0.26 €
0.00 € *
Currently not in stock, we will order for you
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.001 mH
2.1 A
0.048 Ω
Power choke, SMD 1212, 1.5 µH, 1.9 A, 1212FPS-1R5N-01
Order No.:
 74D3601
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-1R5N-01
100 pcs.
0.20 €
0.00 € *
Currently not in stock, we will order for you
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.0015 mH
1.9 A
0.066 Ω
Power choke, SMD 1212, 6.8 µH, 900 mA, 1212FPS-6R8N-01
Order No.:
 74D3605
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-6R8N-01
100 pcs.
0.26 €
0.00 € *
Currently not in stock, we will order for you
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.0068 mH
0.9 A
0.211 Ω
Power choke, SMD 1212, 33 µH, 450 mA, 1212FPS-330N-01
Order No.:
 74D3609
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-330N-01
100 pcs.
0.26 €
0.00 € *
Currently not in stock, we will order for you
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.033 mH
0.45 A
0.959 Ω
Power choke, SMD 1212, 4.7 µH, 1.25 A, 1212FPS-4R7N-01
Order No.:
 74D3604
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-4R7N-01
10 pcs.
0.38 €
50 pcs.
0.33 €
250 pcs.
0.30 €
1000 pcs.
0.27 €
2000 pcs.
0.24 €
3.81 € *
Available: 743 pcs.
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.0047 mH
1.25 A
0.136 Ω
Power choke, SMD 1212, 22 µH, 550 mA, 1212FPS-220N-01
Order No.:
 74D3608
Manufacturer:
 Fastron
Manufacturer SKU
 1212FPS-220N-01
10 pcs.
0.37 €
50 pcs.
0.33 €
250 pcs.
0.30 €
1000 pcs.
0.27 €
2000 pcs.
0.24 €
3.69 € *
Available: 1,612 pcs.
SMD 1212
power choke
3.1 mm
3.1 mm
±30 %
1.5 mm
0.022 mH
0.55 A
0.622 Ω
