1212FPS-101N-01 | Fastron

Power choke, SMD 1212, 100 µH, 250 mA, 1212FPS-101N-01

Order No.: 74D3611
EAN: 4099889010053
MPN:
1212FPS-101N-01
Series: 1212FPS
1212FPS-101N-01 Fastron Fixed Inductors Image 1
1212FPS-101N-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.357 € *
Available in 4 Days: 1,600 pcs. - if ordered today
Total Price:
714.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.357 €

Power inductor, 1212FPS-101N-01, FASTRON

The 1212FPS-101N-01 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.

Applications

  • DC/DC converters
  • Portable devices
  • Backlight for displays
Technical specifications
Filter Property Value
Version power choke

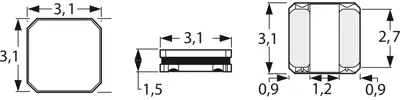

Width 3.1 mm
Height 1.5 mm
Design SMD 1212
Tolerance ±30 %
Saturation current 230 mA
Inductance 100 µH
DC resistance 2.92 Ω
DC current 250 mA
Length 3.1 mm
Logistics
Property Value
Original Packaging Reel with 1 piece
Country of origin MY
Customs tariff number 85045000
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
