0805F-6R8K-01 | Fastron

RF choke, SMD 0805, 6.8 µH, 160 mA, 0805F-6R8K-01

Order No.: 79D5860
EAN: 4099891561819
MPN:
0805F-6R8K-01
Series: 0805F
0805F-6R8K-01 Fastron Fixed Inductors

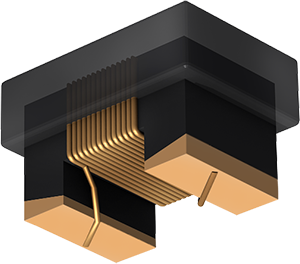

Image may differ
Unit Price (€ / pc.)
0.3451 € *
Available in 4 Days: 500 pcs. - if ordered today
Total Price:
862.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
0.3451 €

RF inductor, 0805F-6R8K-01, Fastron

This wire wound chip inductor is designed for radio frequency (RF) applications that require optimal Q on high frequency circuits. Its gold flash pad metallization provides better solderability for a higher yield in production. Additionally, their encapsulation not only protects the winding but also allows for surface mount assembly.

Applications

  • Mobile telecommunication
  • Automotive subsystems
  • Wireless communication
Technical specifications
Filter Property Value
Height 1.6 mm
Version RF choke
Width 1.8 mm
DC resistance 3.1 Ω
Inductance 6.8 µH
Quality Q Q 20
Design SMD 0805
Tolerance ±10 %
Length 2.3 mm
Measuring frequency 7.9 MHz
DC current 160 mA
Logistics
Property Value
Original Packaging Reel with 100 pieces
Country of origin MY
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
