0805F-1R8K-08 | Fastron

RF choke, SMD 0805, 1.8 µH, 190 mA, 0805F-1R8K-08

Order No.: 74D3010
EAN: 4099889008883
MPN:
0805F-1R8K-08
Series: 0805F
Fastron
0805F-1R8K-08 Fastron Fixed Inductors Image 1
0805F-1R8K-08 Fastron Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version RF choke
Inductance 1.8 µH
DC current 190 mA
Tolerance ±10 %
DC resistance 0.85 Ω
Show 15 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.4879 € *
Available: 0 pcs.
Available in 4 Days: 1,950 pcs.
Leadtime: 1 Week **
Add to Cart
Total Price:
0.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
0.4879 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

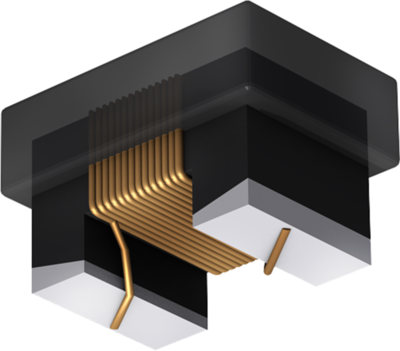

Chip inductor, type Fastron 0805AS./0805AQ./0805F.

Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.

With ferrite carrier material, type 0805F.
Technical specifications
Version RF choke
Design SMD 0805
Width 1.8 mm
DC current 190 mA
DC resistance 0.85 Ω
Quality Q Q 20
Height 1.6 mm
Inductance 1.8 µH
Length 2.3 mm
Measuring frequency 7.9 MHz
Tolerance ±10 %
Show similar products 0
Logistics
Country of origin MY
Customs tariff number 85045000
Original Packaging Bulk with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
