0805F-4R7K-01 | Fastron

RF choke, SMD 0805, 4.7 µH, 90 mA, 0805F-4R7K-01

Order No.: 74D3020
EAN: 4099889008944
MPN:
0805F-4R7K-01
Series: 0805F

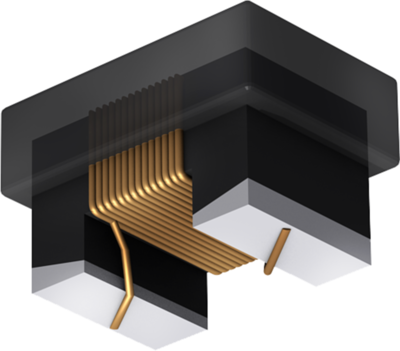

0805F-4R7K-01 Fastron Fixed Inductors Image 1
0805F-4R7K-01 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available: 1,471 pcs.
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.4046 €
50 pcs.
0.3213 €
250 pcs.
0.2737 €
1000 pcs.
0.2356 €
*incl. VAT plus shipping costs
Subject to prior sale

Chip inductor, type Fastron 0805AS./0805AQ./0805F.

Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.

With ferrite carrier material, type 0805F.

Technical specifications
Filter Property Value
Inductance 4.7 µH
DC current 90 mA
DC resistance 3.8 Ω
Design SMD 0805
Version RF choke
Quality Q Q 20
Width 1.8 mm
Height 1.6 mm
Tolerance ±10 %
Measuring frequency 7.9 MHz
Length 2.3 mm
Logistics
Property Value
Country of origin MY
Original Packaging Reel with 2,500 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
