0805F-2R2K-08 | Fastron

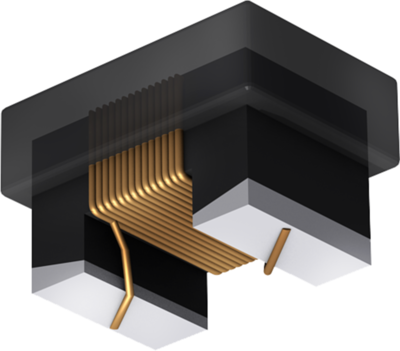

RF choke, SMD 0805, 2.2 µH, 130 mA, 0805F-2R2K-08
Unit Price (€ / pc.)
0.2249 € *
Available: 710 pcs.
Available in 4 Days: 2,040 pcs. - if ordered today
Chip inductor, type Fastron 0805AS./0805AQ./0805F.
Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ferrite carrier material, type 0805F.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 2.3 mm | |
| DC current | 130 mA | |
| Height | 1.6 mm | |
| Inductance | 2.2 µH | |
| Quality Q | Q 20 | |
| Measuring frequency | 7.9 MHz | |
| Width | 1.8 mm | |
| Design | SMD 0805 | |
| DC resistance | 1.7 Ω | |
| Version | RF choke | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1 piece |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
