0805F-1R5K-08 | Fastron
RF choke, SMD 0805, 1.5 µH, 200 mA, 0805F-1R5K-08
Unit Price (€ / pc.)
0.3332 € *
Available in 4 Days: 2,395 pcs. - if ordered today

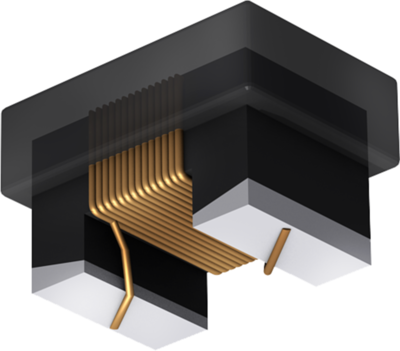

Chip inductor, type Fastron 0805AS./0805AQ./0805F.
Size 0805, molded in epoxy resin, smooth finish. Solderable up to max. +260 °C/10 s.
With ferrite carrier material, type 0805F.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 0.75 Ω | |
| Measuring frequency | 7.9 MHz | |
| Width | 1.8 mm | |
| Inductance | 1.5 µH | |
| Length | 2.3 mm | |
| Quality Q | Q 20 | |
| Tolerance | ±10 % | |
| DC current | 200 mA | |
| Height | 1.6 mm | |
| Version | RF choke | |
| Design | SMD 0805 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 100 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
