0402AS-R18K-08 | Fastron
RF choke, SMD 0402, 180 nH, 65 mA, 0402AS-R18K-08
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3332 €
100 pcs.
0.2856 €
500 pcs.
0.2499 €
1000 pcs.
0.2261 €
*incl. VAT plus shipping costs
Subject to prior sale

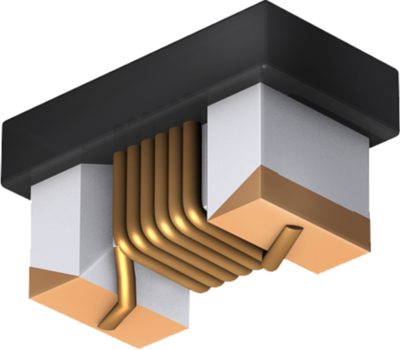

SMD inductor, 0402AS-R18K-08, FASTRON
The 0402AS-R18K-08 is a chip inductor which is used for transmit and receive radio frequency (RF) signals with other electronic devices.
Applications
- Oscillator and signal generators
- Mobile telecommunication
- Automotive Subsystems
- Wireless communication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RF choke | |
| Height | 0.7 mm | |
| Tolerance | ±10 % | |
| DC current | 65 mA | |
| Design | SMD 0402 | |
| Width | 0.65 mm | |
| Length | 1.2 mm | |
| Inductance | 180 nH | |
| DC resistance | 1.5 Ω | |
| Quality Q | Q 10 | |
| Measuring frequency | 50 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Country of origin | MY |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
