0402AS-2N2K-08 | Fastron

RF choke, SMD 0402, 2.2 nH, 640 mA, 0402AS-2N2K-08

Order No.: 76D2606
EAN: 4099889042740
MPN:
0402AS-2N2K-08
Series: 0402AS

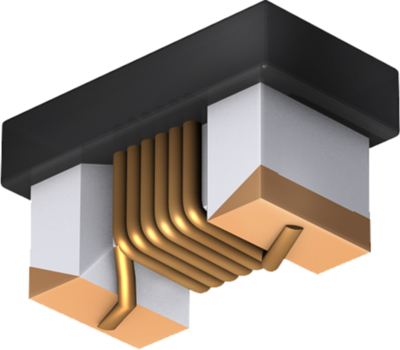

0402AS-2N2K-08 Fastron Fixed Inductors Image 1
0402AS-2N2K-08 Fastron Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.3570 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.3094 €
100 pcs.
0.2618 €
500 pcs.
0.2261 €
1000 pcs.
0.2142 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD-Inductor, 0402AS-2N2K-08, Fastron

The 0402AS-2N2K-08 is used as energy storage devices in switched-mode power devices to produce DC current.

Features

  • Wire wound chip inductors are designed particularly for RF applications that require optimal Q on high frequency circuits
  • Its gold flash pad metallization provides better solderability for a higher yield in your production
  • In addition, their encapsulation not only protects the winding but also allows surface mount assembly
  • It comes in compact sizes (from 0402 to 1812) available in reel packing

Applications

  • Used in LC resonant circuits such as oscillator and signal generators, impendance matching, RF filters etc.
  • Mobile Telecommunication: GSM, CDMA, TCDMA, cordless phones, 2 way radio
  • Automotive Subsystems: TPMS, Keyless Entry, Anti-Theft, GPS
  • Wireless Communication: W-LAN, WIFI, WIMAX, RFID, Bluetooth
  • Non-magnetic versions for medical imaging applications: ASM series
Technical specifications
Filter Property Value
Measuring frequency 250 MHz
Design SMD 0402
DC current 640 mA
Quality Q Q 14
Inductance 2.2 nH
Version RF choke
Length 1.2 mm
Tolerance ±10 %
Height 0.7 mm
DC resistance 110 mΩ
Width 0.65 mm
Logistics
Property Value
Customs tariff number 85045000
Country of origin MY
Original Packaging Reel with 1,000 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
