25-21SYGC/S530-E1/TR8 | EVERLIGHT
LED, SMD, yellow, 573 nm, 0.012 to 0.018 cd, 60°, 25-21SYGC/S530-E1/TR8
Unit Price (€ / pc.)
0.0345 € *
Standard delivery time from the manufacturer is: 18 Weeks

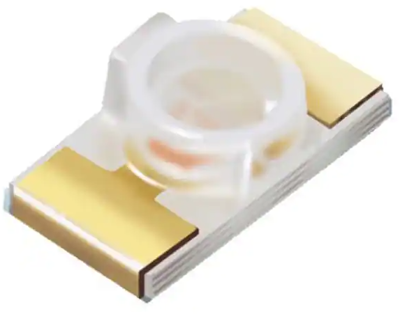

Package chip LED, 25-21SYGC/S530-E1/TR8, EVERLIGHT
The 25-21SYGC/S530-E1/TR8 is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. ․Besides, lightweight makes it ideal for miniature applications.
Features
- Compatible with automatic placement equipment
- Compatible with infrared and vapor phase reflow solder process
- Pb-free
- Mono-color type
Applications
- Automotive: backlighting in dashboard and switch
- Telecommunication: indicator and backlighting in telephone and fax
- Flat backlight for LCD, switch and symbol
- General use
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour of the LED | yellow | |
| Wavelength | 573 nm | |
| Width | 1.6 mm | |
| On-State Voltage | 2.4 V | |
| Lens | clear | |
| Light intensity min. | 0.012 cd | |
| Forward Current | 25 mA | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Number of LEDs | 1 | |
| Radiation angle | 60 ° | |
| Light intensity typ. | 0.018 cd | |
| Length | 3.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
