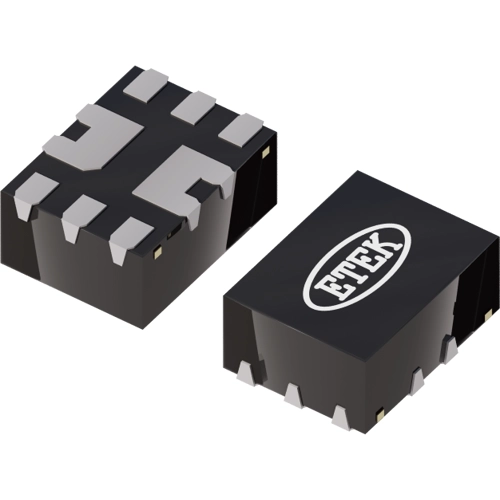

Power switch 3–26V, 0.7–5A, OVP, ET20176
NCNR (non cancelable / non returnable)
Current Limit Power Switch, ET20176, ETEK Microelectronics
The ET20176 is a current limit N-Channel MOSFET power switch. It is designed to protect circuitry on the output from transients on the input. It also protects the input from undesired shorts and transients coming from the output. The current limit magnitude is controlled by an external resistor from ILIMIT to GND. The current limit magnitude is controlled by an external resistor from ILIMIT to GND. It is fixed at 2.5A when ILIMIT is floating. Programmable soft-start time controls the slew rate of the output voltage during the start-up time. It can be controlled by the DV/DT pin setting and MODE pin setting. The output voltage is limited by the OVP function. The clamping voltage can be set by the MODE connection.
Features
- Programmable Current Limit and Soft-Start Time
- Short-Circuit Protection
- Over-Current Protection
- Internal Thermal Shutdown Protection
Applications
- SSD Hard Disk
- PC Cards
- Wireless Modem Data Cards
- USB Power Distribution
- USB Protection
- Server PC
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Country of origin | CN |
| Customs tariff number | 85429000 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
