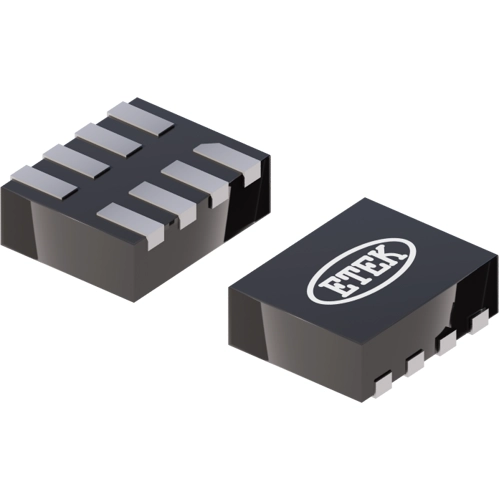

2 Bit Level Translator, ET2102, ETEK Microelectronics

The ET2102 is a high-performance configurable dual-voltage-supply translator for bi-directional voltage translation over a wide range of input and output voltages levels. The ET2102 also works in a push-pull environment. It is intended for use as a voltage translator between I2C bus compliant masters and slaves. Internal 10KΩ pull-up resistors are provided. The device is designed so the A port tracks the VCCA level and the B port tracks the VCCB level.

This allows for bi-directional A/B port voltage translation between any two levels from 1.65V to 5.5V. VCCA can equal VCCB from 1.65V to 5.5V. Either VCC can be powered-up first. Internal power-down control circuits place the device in 3-state if either VCC is removed. The two ports of the device have automatic direction-sense capability. Either port may sense an input signal and transfer it as an output signal to the other port.

Features

• No direction control needed
• Open-drain inputs / outputs
• Works in push pull environment
• Accommodates standard-mode and fast-mode I2C-bus devices
• Supports I2C clock stretching & multi-master
