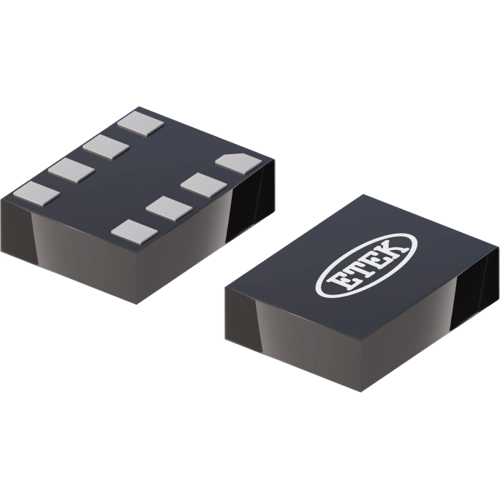

ET5A0ADJYB | ETEK Microelectronics
LDO 1A, adjustable, ET5A0ADJYB
NCNR (non cancelable / non returnable)
Low Dropout LDO, ET5A0ADJYB, ETEK Microelectronics
The ET5A0ADJYB is CMOS-based low-dropout, low-power linear regulators, offering 1A with low dropout voltage, high ripple rejection, high output accuracy and low supply current. The ET5A0ADJY2B consist of an accurate voltage-reference block, an error amplifier, a voltage-setting resistor net, a PMOSFET pass device, a thermal-shutdown circuit, and a current limit circuit with short protection. The ET5A0ADJYB use a type of outstanding CMOS process to minimize the supply current. A low on-resistance PMOS pass device is equipped for lower dropout voltage. ET5A0ADJYB also possess the CE function to save more energy and extend the battery life. The ET5A0ADJYB can choose the output current 1.0A. The output voltage can be adjusted from 0.75v to 4.3v using two external resistors.
Features
- Excellent Load/Line Transient Response
- Built-in Over Current Protection and Thermal Shutdown circuit
- Built-in Auto-discharging circuit
- Reverse Current Protection
Applications
- Constant-voltage power supply for battery-powered device
- Constant-voltage power supply for TV, notebook PC and home electric appliance
- Constant-voltage power supply for portable equipment
- Label Information
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Country of origin | CN |
| Customs tariff number | 85429000 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
