284699 | ERNI

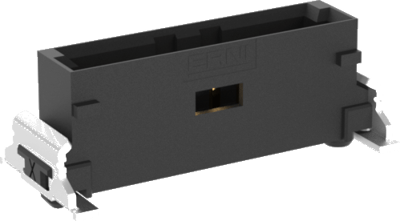

Pin header, 8 pole, pitch 1.27 mm, straight, black, 284699
Order No.: 58F5138
EAN: 4099891003265
MPN:
284699
Unit Price (€ / pc.)
2.3562 € *
Available: 1,276 pcs.
Leadtime: 6 Weeks **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
25 pcs.
2.0111 €
100 pcs.
1.8564 €
250 pcs.
1.7493 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connectors series SRC, type ERNI MiniBridge.
Grid 1.27 mm; Housing: LCP to UL 94 V-0. Current rating: 4.0 A at +20 °C. Dielectric strength contact/contact: 500 VRMS. Contact resistance: max. 25 mohm. Useful life: 500 insertion/removal cycles. Operating temperatures: –55 to +125 °C.
Male connectors P, straight, SMD terminals, type 214../234.

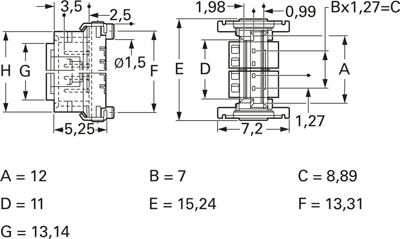

Technical attributes (type, number of poles): 284699, 8–pole
Technical specifications
| Connection | SMD | |
| Connection plating | gold-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 3.6 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 1.27 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
