294711-E | ERNI

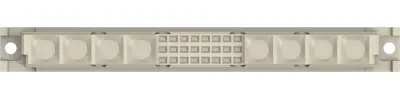

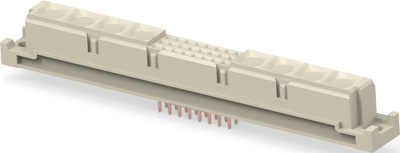

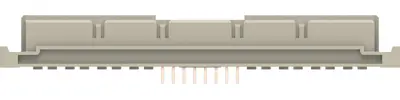

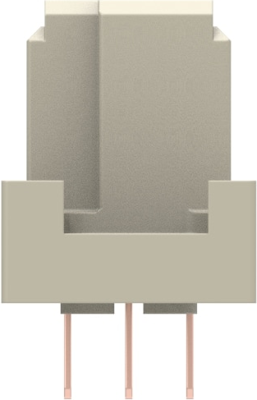

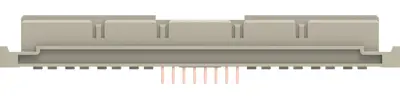

Female connector, type M, 24 pole, a-b-c, pitch 2.54 mm, solder pin, straight, gold-plated, 294711-E
Order No.: 54F1544
MPN:
294711-E
Unit Price (€ / pc.)
6.1047 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1047 €
10 pcs.
5.6763 €
25 pcs.
5.2955 €
50 pcs.
4.8195 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 294711-E, ERNI
Receptacle, Board-to-Board, 24 Position, 2.54 mm Centerline, Printed Circuit Board, 3 Row, Vertical, 8 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Performance level | 2 | |
| Pin number | 24 pole | |
| contact surface | gold-plated | |
| Connection | solder pin | |
| Grid | 2.54 mm | |
| Design | M | |
| Contact type | socket | |
| Contact row assignment | a-b-c |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
