1SNK712011R0000 | ENTRELEC
Terminal block, screw connection, 0.5-25 mm², 3 pole, 76 A, 8 kV, gray, 1SNK712011R0000
Order No.: 72P4439
MPN:
1SNK712011R0000
Unit Price (€ / pc.)
6.2713 € *
Available in 5 Days: 164 pcs. - if ordered today
Total Price:
6.27 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2713 €
10 pcs.
5.8191 €
25 pcs.
5.4383 €
50 pcs.
4.9385 €
*incl. VAT plus shipping costs
Subject to prior sale

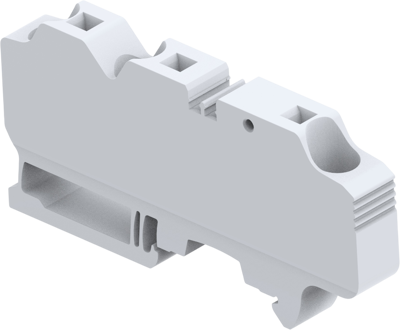

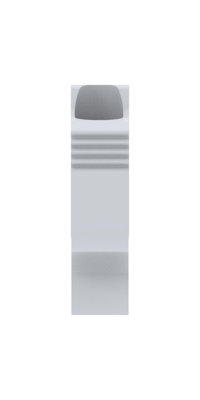

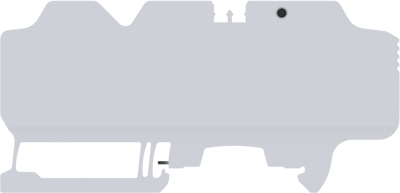

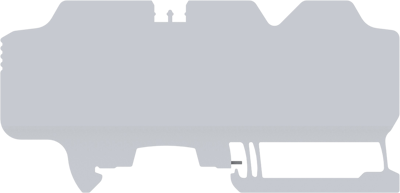

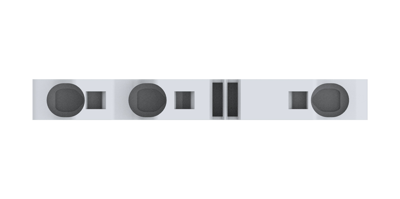

DIN Rail terminal block, 1SNK712011R0000, ENTRELEC
PI-Spring Terminal Block, Feed-Through, Gray, 12 mm Spacing, 3 Position, DIN Rail, -55 - 110 °C, ENTRELEC SNK.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | terminal block | |
| Number of terminals | 1 | |
| Pin number | 3 pole | |
| Cable cross-section | 0.5-25 mm² | |
| AWG cross-section | AWG 20 to 4 | |
| Rated surge voltage | 8 kV | |
| Rated current | 76 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 98.3 mm | |
| Width | 12 mm | |
| Height | 98.3 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
