1SNK710150R0000 | ENTRELEC

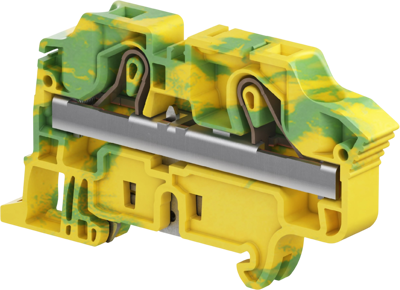

Protective conductor terminal, spring-clamp connection, 0.5-16 mm², 2 pole, 8 kV, yellow/green, 1SNK710150R0000
Order No.: 72P4437
MPN:
1SNK710150R0000
Unit Price (€ / pc.)
6.8901 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
6.89 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8901 €
10 pcs.
6.4022 €
25 pcs.
5.9738 €
50 pcs.
5.4264 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN Rail terminal block, 1SNK710150R0000, ENTRELEC
PI-Spring Terminal Block, Ground, Green and Yellow, 10 mm Spacing, 2 Position, Spring Terminal, Power and Signal, DIN Rail, 6 AWG, ENTRELEC SNK.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| Height | 87.7 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Version | protective conductor terminal | |
| Colour | yellow/green | |
| Pin number | 2 pole | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 20 to 6 | |
| Length | 47.6 mm | |
| Rated surge voltage | 8 kV | |
| Width | 10 mm | |
| Number of terminals | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
