1SNK710010R0000 | ENTRELEC

Terminal block, spring-clamp connection, 0.5-16 mm², 2 pole, 57 A, 8 kV, gray, 1SNK710010R0000

Order No.: 72P4435
MPN:
1SNK710010R0000

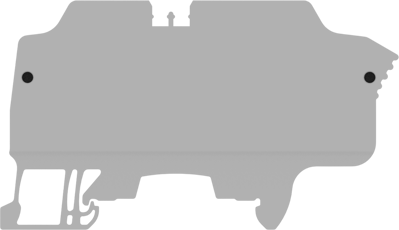

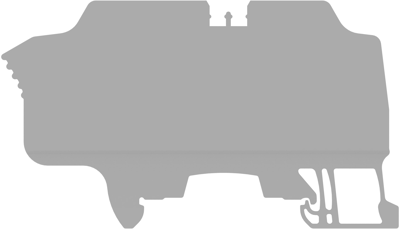

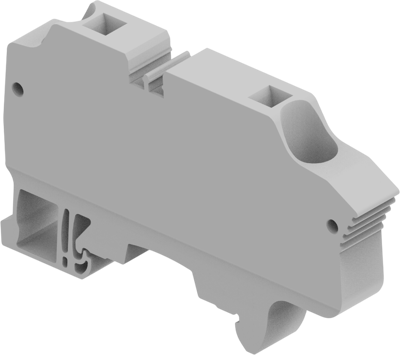

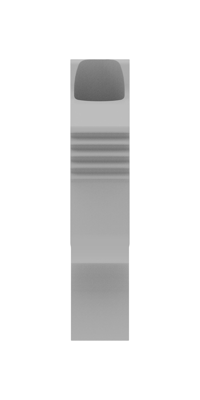

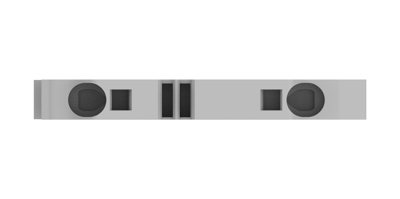

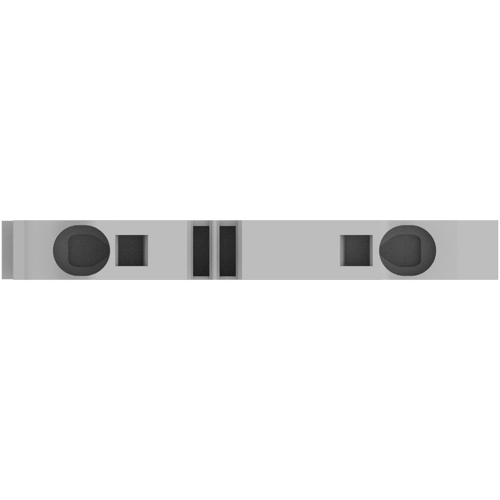

1SNK710010R0000 ENTRELEC Series Terminals Image 1
1SNK710010R0000 ENTRELEC Series Terminals Image 2
1SNK710010R0000 ENTRELEC Series Terminals Image 3
1SNK710010R0000 ENTRELEC Series Terminals Image 4
1SNK710010R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
3.6176 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6176 €
10 pcs.
3.3439 €
50 pcs.
3.1178 €
100 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK710010R0000, ENTRELEC

PI-Spring Terminal Block, Feed-Through, Gray, 10 mm Spacing, 2 Position, Spring Terminal, Power and Signal, DIN Rail, 600 VAC, ENTRELEC SNK.

Technical specifications
Version terminal block
Number of terminals 1
Pin number 2 pole
Cable cross-section 0.5-16 mm²
AWG cross-section AWG 20 to 6
Rated surge voltage 8 kV
Rated current 57 A
Rated Voltage 1000 V
Degree of soiling 3
Length 47.5 mm
Width 10 mm
Height 82.5 mm
Connection spring-clamp connection
Colour gray
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
