1SNK708010R0000 | ENTRELEC

Feed through terminal, spring-clamp connection, 0.5-10 mm², 2 pole, 41 A, 8 kV, gray, 1SNK708010R0000

Order No.: 72P4400
MPN:
1SNK708010R0000

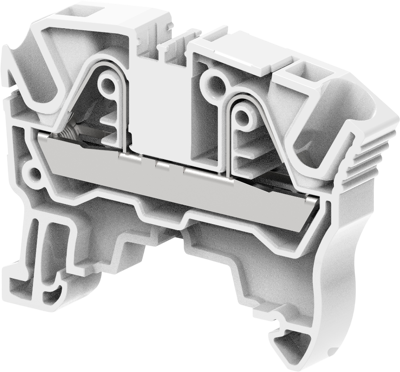

1SNK708010R0000 ENTRELEC Series Terminals Image 1

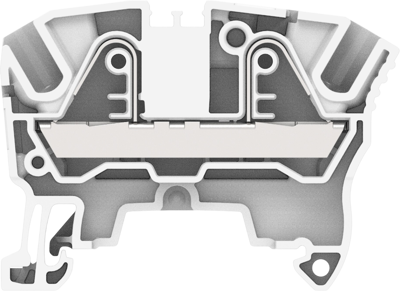

1SNK708010R0000 ENTRELEC Series Terminals Image 2

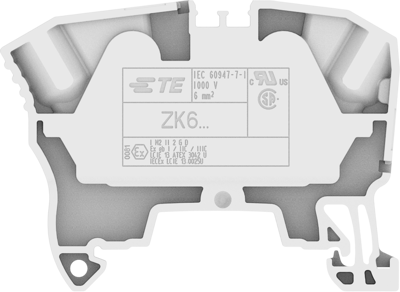

1SNK708010R0000 ENTRELEC Series Terminals Image 3

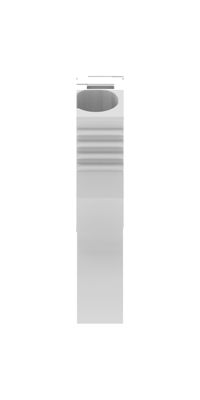

1SNK708010R0000 ENTRELEC Series Terminals Image 4

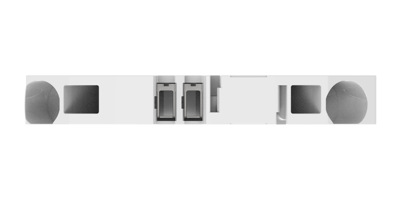

1SNK708010R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
2.4514 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.2729 €
50 pcs.
2.1182 €
100 pcs.
1.9754 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK708010R0000, ENTRELEC

PI-Spring Terminal Block, Feed-Through, Gray, 8 mm Spacing, 2 Position, Spring Terminal, Power und Signal, DIN Rail, 600 VAC, ENTRELEC SNK.

Technical specifications
Pin number 2 pole
Version feed through terminal
AWG cross-section AWG 24 to 8
Cable cross-section 0.5-10 mm²
Rated Voltage 1000 V
Number of terminals 1
Connection spring-clamp connection
Height 57.5 mm
Rated surge voltage 8 kV
Length 41.9 mm
Colour gray
Rated current 41 A
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
