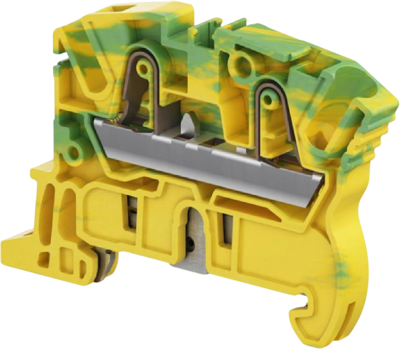

1SNK706150R0000 | ENTRELEC
Protective conductor terminal, spring-clamp connection, 0.5-6.0 mm², 2 pole, 8 kV, yellow/green, 1SNK706150R0000
Order No.: 72P4395
MPN:
1SNK706150R0000
Unit Price (€ / pc.)
4.6648 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.66 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6648 €
10 pcs.
4.3316 €
25 pcs.
4.0460 €
50 pcs.
3.6771 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN Rail terminal block, 1SNK706150R0000, ENTRELEC
PI-Spring Terminal Block, Ground, Green & Yellow, 6 mm Spacing, 2 Position, Spring Terminal, Power und Signal, DIN Rail, 10 AWG, ENTRELEC SNK.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 26 to 10 | |
| Number of terminals | 1 | |
| Length | 41.2 mm | |
| Height | 62.7 mm | |
| Rated surge voltage | 8 kV | |
| Pin number | 2 pole | |
| Colour | yellow/green | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.5-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
