1SNK706011R0000 | ENTRELEC

Feed through terminal, spring-clamp connection, 0.5-6.0 mm², 3 pole, 32 A, 8 kV, gray, 1SNK706011R0000

Order No.: 72P4402
MPN:
1SNK706011R0000

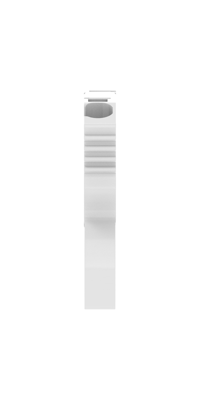

1SNK706011R0000 ENTRELEC Series Terminals Image 1

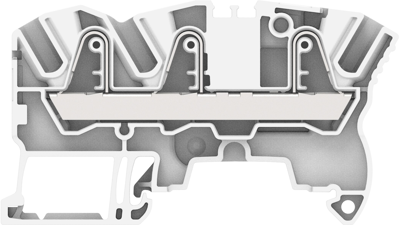

1SNK706011R0000 ENTRELEC Series Terminals Image 2

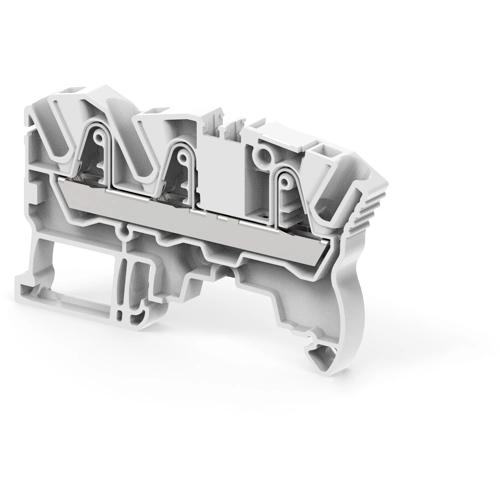

1SNK706011R0000 ENTRELEC Series Terminals Image 3

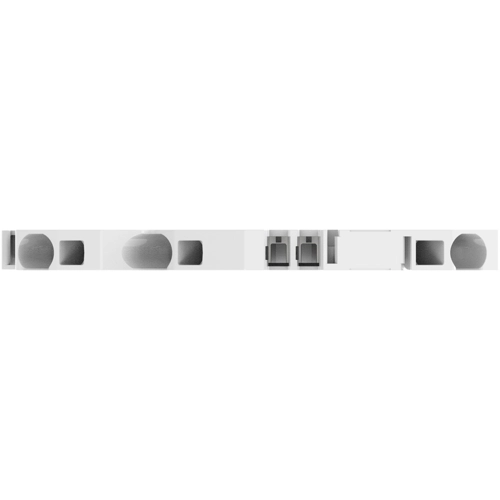

1SNK706011R0000 ENTRELEC Series Terminals Image 4
1SNK706011R0000 ENTRELEC Series Terminals Image 5
Image may differ
Unit Price (€ / pc.)
2.0944 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
10 pcs.
1.9397 €
50 pcs.
1.8088 €
100 pcs.
1.6898 €
*incl. VAT plus shipping costs
Subject to prior sale

DIN Rail terminal block, 1SNK706011R0000, ENTRELEC

PI-Spring Terminal Block, Feed-Through, Gray, 6 mm Spacing, 3 Position, Spring Terminal, Power und Signal, DIN Rail, 600 VAC, ENTRELEC SNK.

Technical specifications
Pin number 3 pole
Version feed through terminal
AWG cross-section AWG 26 to 10
Cable cross-section 0.5-6.0 mm²
Rated Voltage 1000 V
Number of terminals 1
Connection spring-clamp connection
Height 72.5 mm
Rated surge voltage 8 kV
Length 41.1 mm
Colour gray
Rated current 32 A
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
