1SNK508150R0000 | ENTRELEC

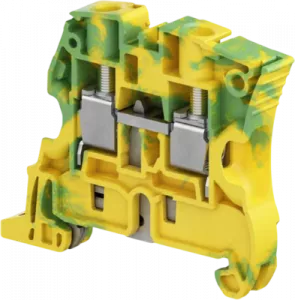

Protective conductor terminal, screw connection, 0.5-10 mm², 2 pole, 8 kV, yellow/green, 1SNK508150R0000
Order No.: 72P4443
MPN:
1SNK508150R0000
Unit Price (€ / pc.)
6.9258 € *
Available in 5 Days: 5,900 pcs. - if ordered today
Total Price:
6.93 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9258 €
10 pcs.
6.4498 €
50 pcs.
6.0452 €
100 pcs.
5.6882 €
*incl. VAT plus shipping costs
Subject to prior sale
DIN Rail terminal block, 1SNK508150R0000, ENTRELEC
Screw Clamp Terminal Block, Ground, Green and Yellow, 8 mm Spacing, 2 Position, Screw Terminal, Power and Signal, DIN Rail, 6 AWG, ENTRELEC SNK.
Technical specifications
| Rated surge voltage | 8 kV | |
| AWG cross-section | AWG 24 to 6 | |
| Version | protective conductor terminal | |
| Width | 8 mm | |
| Pin number | 2 pole | |
| Degree of soiling | 3 | |
| Length | 47.3 mm | |
| Height | 59.5 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Number of terminals | 1 | |
| Colour | yellow/green | |
| Connection | screw connection |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
