LED2472V 500 V | ELC
Voltmeter DC AC config. 2V 20V 200V 500V 2000 pts
Active
Total price
(
55.6682 €
* / pcs.)
55.67 €
Available: 2 pcs.
Please send price/quantity requests to info@buerklin.com
Description
Product by ELC at Bürklin Elektronik

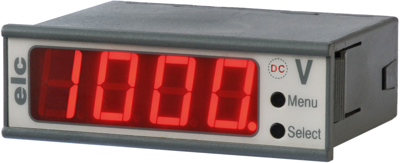

Voltmeter, LED2472V500V, ELC
Features
- Display : 31/2 red 14 mm LED indicators
- Limit of the measure in frequency (RMS mode) : 40 to 750 Hz
- The masses of measurement input (e-) and supply are connected except in case of using optional one of two supplies.
- Appearance : Indication of the presence of an alternating voltage. Two side clips for quick mounting without tools, on a surface having between 0.8 circumferential thickness and 5 mm.
Technical specifications
| AC or DC measurement possible | AC and DC | |
| Width | 72 mm | |
| Height | 24 mm | |
| max. Voltage | 500 V | |
| min. Voltage | 2 V | |
| Assembly | built-In mounting |
Logistics
| Country of origin | FR |
| Customs tariff number | 90303320 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Order No.:
24K9061
Manufacturer:
ELC
Manufacturer SKU
LED2472V 200 V
1 pcs.
73.78 €
73.78 € *
Available: 1 pcs.
AC and DC
72 mm
24 mm
built-In mounting
500 V
2 V
Order No.:
24K9062
Manufacturer:
ELC
Manufacturer SKU
LED2472V 500 V
1 pcs.
55.6682 €
55.67 € *
Available: 2 pcs.
AC and DC
72 mm
24 mm
built-In mounting
500 V
2 V
Order No.:
24K9059
Manufacturer:
ELC
Manufacturer SKU
LED2472V 002V
1 pcs.
73.78 €
73.78 € *
Available: 1 pcs.
AC and DC
72 mm
24 mm
built-In mounting
500 V
2 V
Order No.:
24K9060
Manufacturer:
ELC
Manufacturer SKU
LED2472V 020 V
1 pcs.
73.78 €
AC and DC
72 mm
24 mm
built-In mounting
500 V
2 V
