LED2472V 002V | ELC

Voltmeter DC AC config. 2V 20V 200V 500V 2000 pts, LED2472V 002V

Order No.: 24K9059
EAN: 3760244880574
MPN:
LED2472V 002V
LED2472V002V
ELC

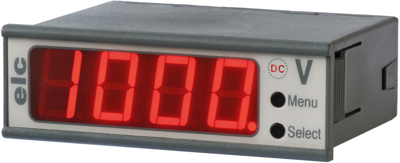

LED2472V 002V ELC Voltmeter
Image may differ
Unit Price (€ / pc.)
75.565 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
75.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
75.565 €

Voltmeter, LED2472V002V, ELC

Features

  • Display : 31/2 red 14 mm LED indicators
  • Limit of the measure in frequency (RMS mode) : 40 to 750 Hz
  • The masses of measurement input (e-) and supply are connected except in case of using optional one of two supplies.
  • Appearance : Indication of the presence of an alternating voltage. Two side clips for quick mounting without tools, on a surface having between 0.8 circumferential thickness and 5 mm.
Technical specifications
AC or DC measurement possible AC and DC
Width 72 mm
Height 24 mm
max. Voltage 500 V
min. Voltage 2 V
Assembly built-in mounting
Logistics
Country of origin FR
Customs tariff number 90303320
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
