ALR3220 | ELC

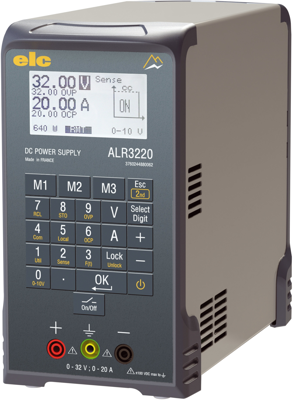

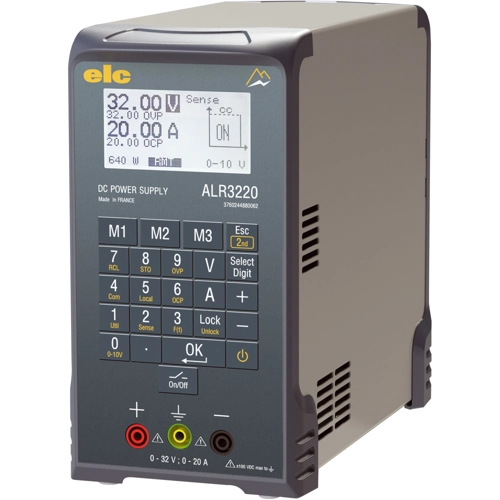

Programmable laboratory power supply, 32 VDC, outputs: 1 (20 A), 0 to 20 A, 640 W, 207-253 VAC, ALR3220
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
850.85 € *
Standard delivery time from the manufacturer is: 12 Weeks
Adjustable power supply unit Programmable, ALR3220, ELC
Adjustable power supply Programmable elc ALR3220, 0 - 32 V, 0 - 20 A, 640 W, 1 output LabVIEW (LAN ETHERNET option)
Features
- Automatic mode selection: Independent, Tracking, Serial and Parallel.
- Large graphic display
- Tactile : sensory keyboard
- Output on the back, used for remote sensing
- Rise and fall time
- Automatic switch-off at each configuration change of the controlling or controlled channels.
- Short-circuit protection by current regulation.
- Transformer with primary overcurrent protection by fuse.
Applications
- Measurement technology, industry, power management, schools, laboratory, maintenance & repair
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output voltage DC | 32 VDC | |
| Output current | 20 A | |
| Range of Output Currence | 0 to 20 A | |
| Power | 640 W | |
| Input voltage AC | 207-253 VAC | |
| efficiency | 84 % | |
| Number of outputs | 1 | |
| Width | 111 mm | |
| Height | 210 mm | |
| Depth | 260 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 90308900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
