EA UNITFT101-A | DISPLAY VISIONS

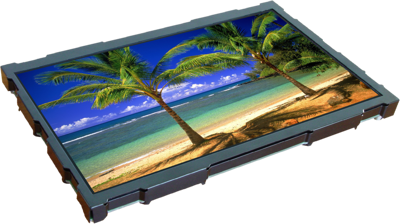

TFT display, 10.1"/25.7 cm, 1280 x 800, EA UNITFT101-A
Order No.: 73S2401
MPN:
EA UNITFT101-A
Unit Price (€ / pc.)
743.1669 € *
Standard delivery time from the manufacturer is: 1 Week
Multifunction-TFT, EA UNITFT101-A, DISPLAY VISIONS
Multifunction Control Unit 10.1" TFT/IPS with object-based display: move objects at any time, display and change measurement value automatically, change character size while text is displayed, fade elements in and out softly Create screens easily with uniTFTDesigner for Windows.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | 0 °C | |
| max. operating temperature | 50 °C | |
| screen diagonal | 10.1"/25.7 cm | |
| Viewing area (width) | 219.5 mm | |
| Viewing range (height) | 138 mm | |
| Resolution | 1280 x 800 | |
| Shell size | 235 x 161 x 17.1 mm | |
| Product type | TFT display |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85312095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
