B500C3700-2200A | Diotec
Silicon bridge rectifier, SIL, 1 kV, 2.2 A

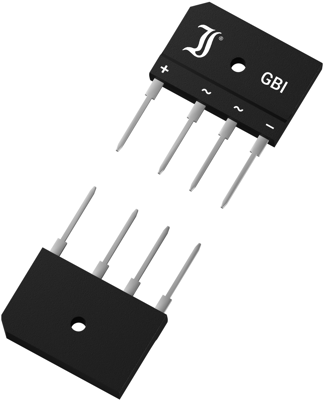

Images may differ
Total price
( 2.5466 € * / pcs.)
2.55 €
Available: 50 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
2.5466 €
10 pcs.
2.1301 €
100 pcs.
1.8207 €
250 pcs.
1.6541 €
1000 pcs.
1.5232 €
*incl. VAT plus shipping costs
Description
Silicon bridge rectifiers, type Diotec B..C3700-2200.
Technical specifications
| Version | 1-phase | |
| Input voltage | 500 V | |
| Enclosure | SIL | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -50 °C | |
| Assembly | THT | |
| Rated current | 2.2 A | |
| Voltage V RRM (peak reverse voltage) | 1 kV |
Logistics
| Country of origin | SI |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
Download
Variations
Search results: 1 item in 6 variations
*incl. VAT plus shipping costs
Order No.:
60A800
Manufacturer:
Diotec
Manufacturer SKU:
B40C3700-2200A
2.02 € *
1 pcs.
2.0230 €
10 pcs.
1.6898 €
100 pcs.
1.4399 €
250 pcs.
1.3090 €
1000 pcs.
1.2019 €
Available: 259 pcs.
Leadtime
40 V
80 V
1-phase
THT
-50 °C
150 °C
2.2 A
SIL
Order No.:
60A802
Manufacturer:
Diotec
Manufacturer SKU:
B80C3700-2200A
2.13 € *
1 pcs.
2.1301 €
25 pcs.
1.7255 €
100 pcs.
1.4399 €
250 pcs.
1.2971 €
1000 pcs.
1.1781 €
Available: 195 pcs.
Leadtime
80 V
160 V
1-phase
THT
-50 °C
150 °C
2.2 A
SIL
Order No.:
60A810
Manufacturer:
Diotec
Manufacturer SKU:
B500C3700-2200A
2.55 € *
1 pcs.
2.5466 €
10 pcs.
2.1301 €
100 pcs.
1.8207 €
250 pcs.
1.6541 €
1000 pcs.
1.5232 €
Available: 50 pcs.
Leadtime
500 V
1 kV
1-phase
THT
-50 °C
150 °C
2.2 A
SIL
Order No.:
09S3855
Manufacturer:
Diotec
Manufacturer SKU:
B380C3700A
500 pcs.
1.428 €
Available: 0 pcs.
Leadtime
380 V
800 V
1-phase
THT
-50 °C
150 °C
2.2 A
SIL
Order No.:
09S3834
Manufacturer:
Diotec
Manufacturer SKU:
B125C3700A
500 pcs.
1.3209 €
Available: 0 pcs.
Leadtime
125 V
250 V
1-phase
THT
-50 °C
150 °C
2.2 A
SIL
Order No.:
09S3844
Manufacturer:
Diotec
Manufacturer SKU:
B250C3700A
500 pcs.
1.3566 €
Available: 0 pcs.
Leadtime
250 V
600 V
1-phase
THT
-50 °C
150 °C
2.2 A
SIL
