DI7A6N04SQ2-AQ | Diotec Semiconductor

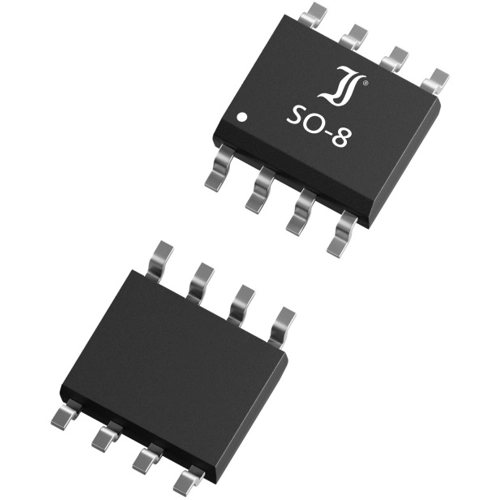

Diotec Semiconductor N/N channel, AEC-Q101 qualified MOSFET, 40 V, 7.6 A, SO-8, DI7A6N04SQ2-AQ
Order No.: 10S9368
MPN:
DI7A6N04SQ2-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1800 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1800 €
100 pcs.
0.1440 €
250 pcs.
0.1260 €
1000 pcs.
0.1152 €
4000 pcs.
0.1008 €
*incl. VAT plus shipping costs
Subject to prior sale
Dual N-Channel Power MOSFET, DI7A6N04SQ2-AQ, Diotec Semiconductor
Features
- Dual MOSFET
- Logic level drive
- Low gate charge
- Low profile, space saving package
- Low on state resistance
- Fast switching times
Applications
- DC/DC Converters
- Power Supplies
- DC Drives
- Synchronous Rectifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | N/N channel, AEC-Q101 qualified | |
| max. Voltage | 40 V | |
| Max. current | 7.6 A | |
| drain-source on resistance RDS (on) max @VGS=10V | 28 mΩ | |
| Enclosure | SO-8 | |
| Gate Charge Qg @10V (nC) | 1.8x10<sup>-8</sup> C | |
| Power loss | 3.1 W | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
