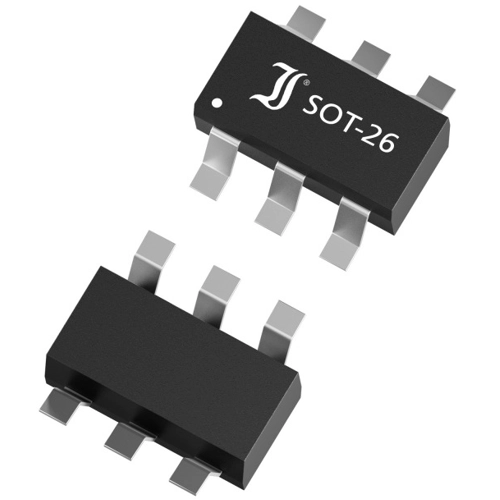

BC817BPN-AQ | Diotec Semiconductor
Bipolar junction transistor, NPN/PNP, 500 mA, 45 V, SMD, SOT-26, BC817BPN-AQ
Order No.: 10S9332
MPN:
BC817BPN-AQ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0825 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
0.82 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0825 €
100 pcs.
0.0715 €
250 pcs.
0.0550 €
1000 pcs.
0.0481 €
3000 pcs.
0.0384 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD General Purpose NPN Transistor, BC817BPN-AQ, Diotec Semiconductor
Features
- General Purpose
- Three current gain groups
Applications
- Signal processing
- Switching
- Amplification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | SOT-26 | |
| Version | NPN/PNP | |
| Collector current | 500 mA | |
| max.voltage between collector and emitter Vceo | 45 V | |
| max.voltage between collector and base Vcbo | 50 V | |
| Power dissipation | 370 mW | |
| Transit frequency fTmin | 100 MHz | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85412100 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
