FMMT493TA | Diodes
Bipolar junction transistor, NPN, 1 A, 100 V, SMD, SOT-23, FMMT493TA
Unit Price (€ / pc.)
0.0875 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0875 €
50 pcs.
0.0813 €
250 pcs.
0.0750 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN transistor, FMMT493TA, DIODES

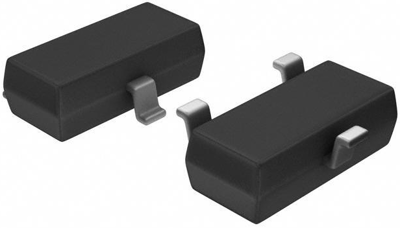

NPN medium power transistor in SOT23 case.
Features
- Halogen and antimony free
- RoHS Compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | NPN | |
| Assembly | SMD | |
| Min DC gain | 100 mA | |
| Enclosure | SOT-23 | |
| Rated current | 2 A | |
| Collector current | 1 A | |
| min. operating temperature | -55 °C | |
| Power dissipation | 0.5 W | |
| Transit frequency fTmin | 150 MHz | |
| Saturation voltage | 600 mV | |
| Max DC amplification | 300 mA | |
| max. operating temperature | 150 °C | |
| max.voltage between collector and base Vcbo | 120 V | |
| max.voltage between collector and emitter Vceo | 100 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85412900 |
| Country of origin | QU |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
